DESIGNED with Passion
BUILT FOR ADVENTURE

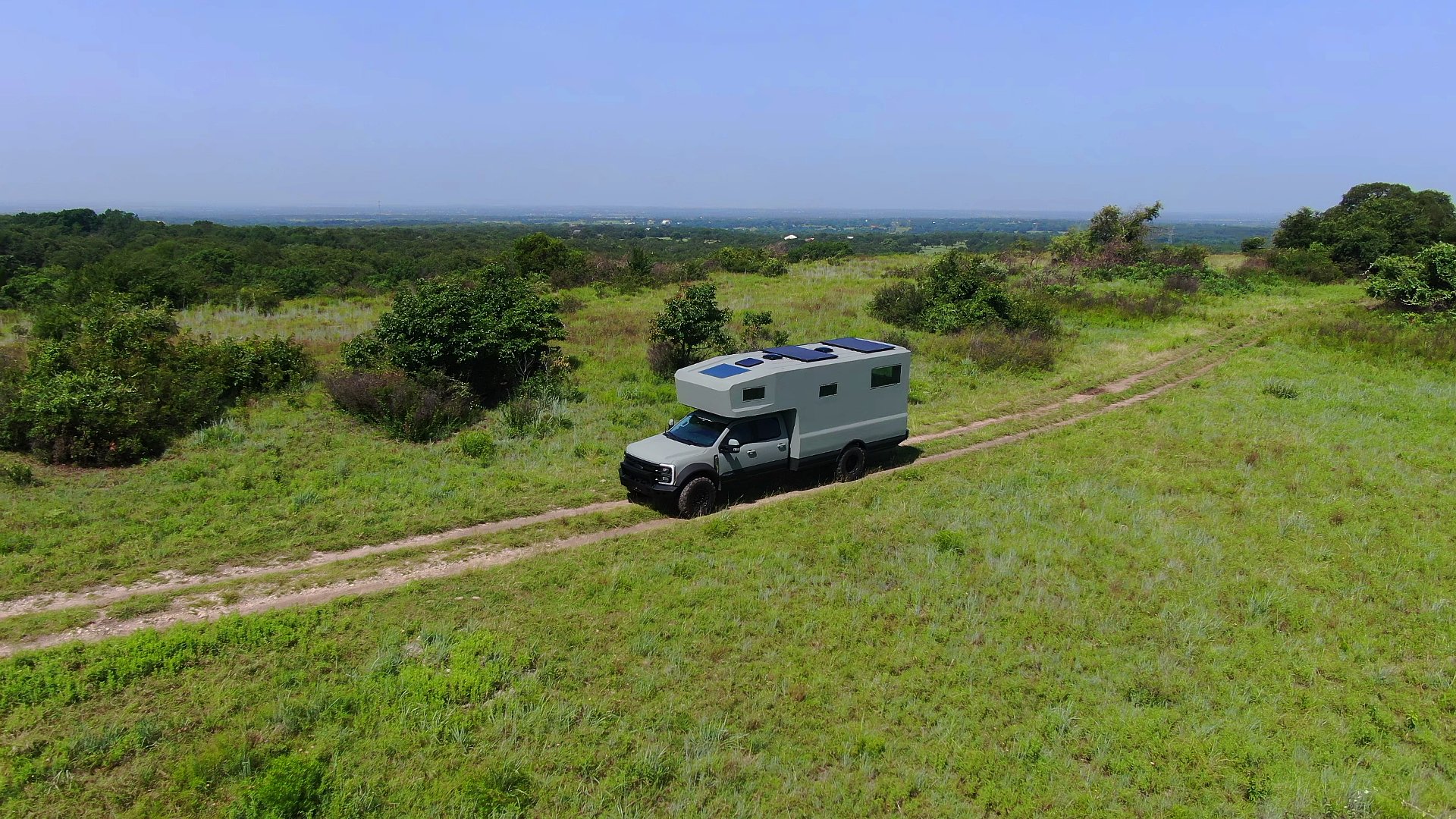

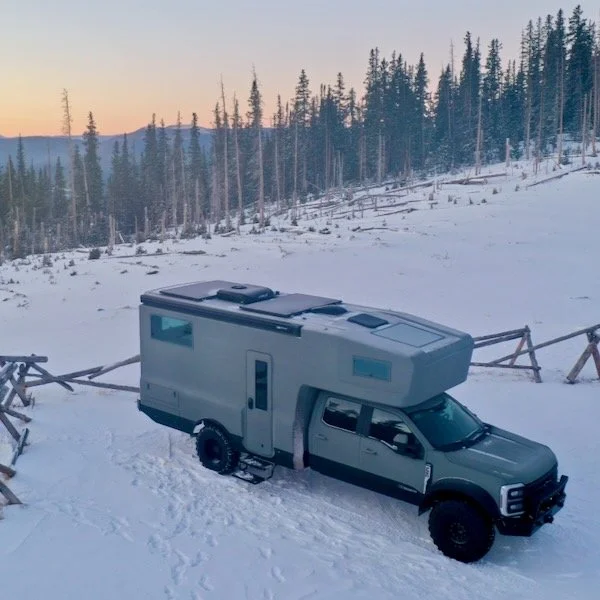

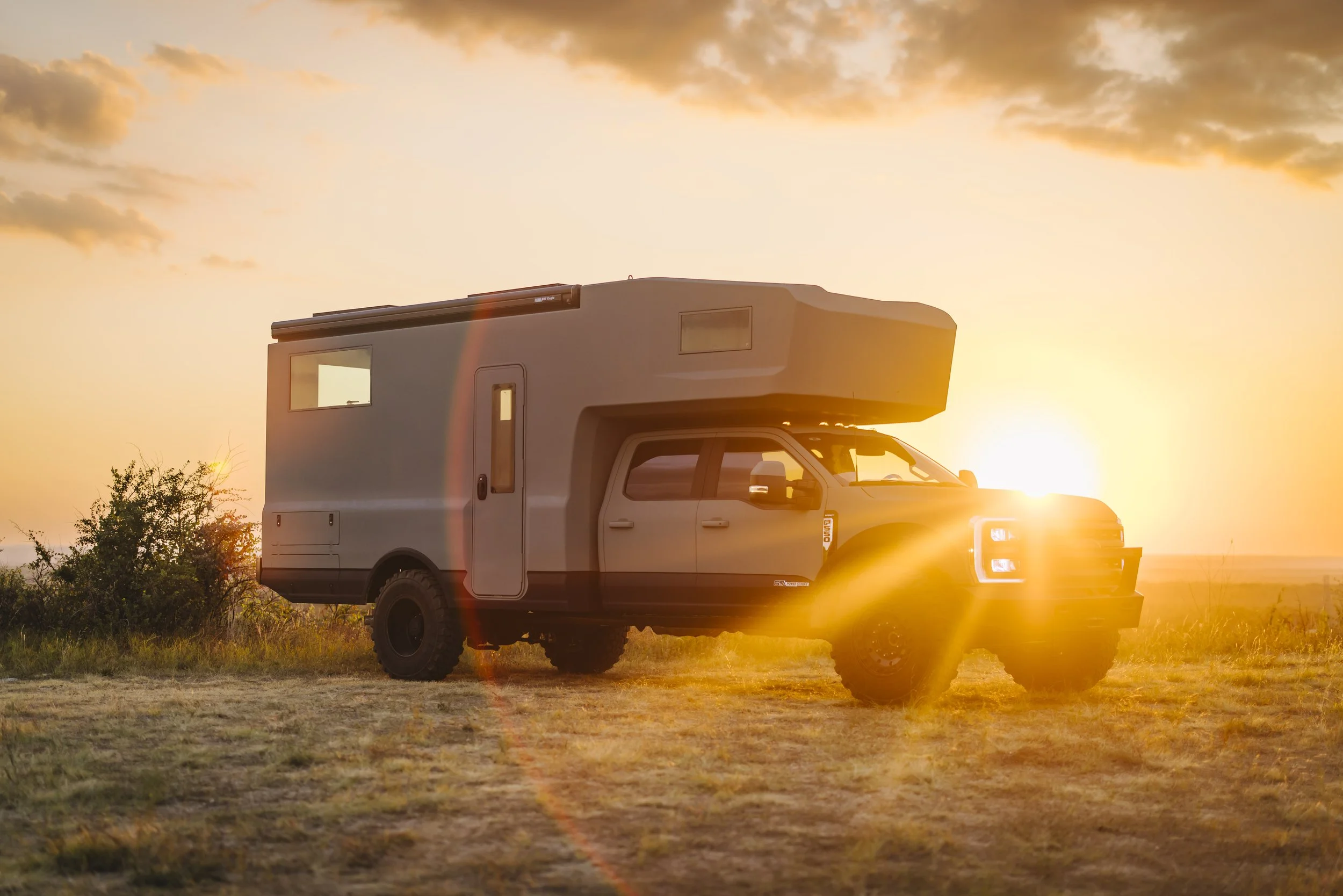

The Ever Expedition Shell is a best-in-class,
one piece habitat and custom subframe for Ford F550 trucks.
FULLY ASSEMBLED
No seams and no compromise. This means a superior, monocoque structure that DIY kits simply can't match. No more gluing panels together and dealing with endless clamping. No thermal bridging. We mount our shells to your truck or ship to your chosen upfitter, totally assembled and ready to build.
A Solid Foundation
Full size expedition shells require a strong foundation. Ever Expedition shells arrive bonded to a bespoke, FEA tested, custom made high strength steel subframe.
The Sky is the Limit

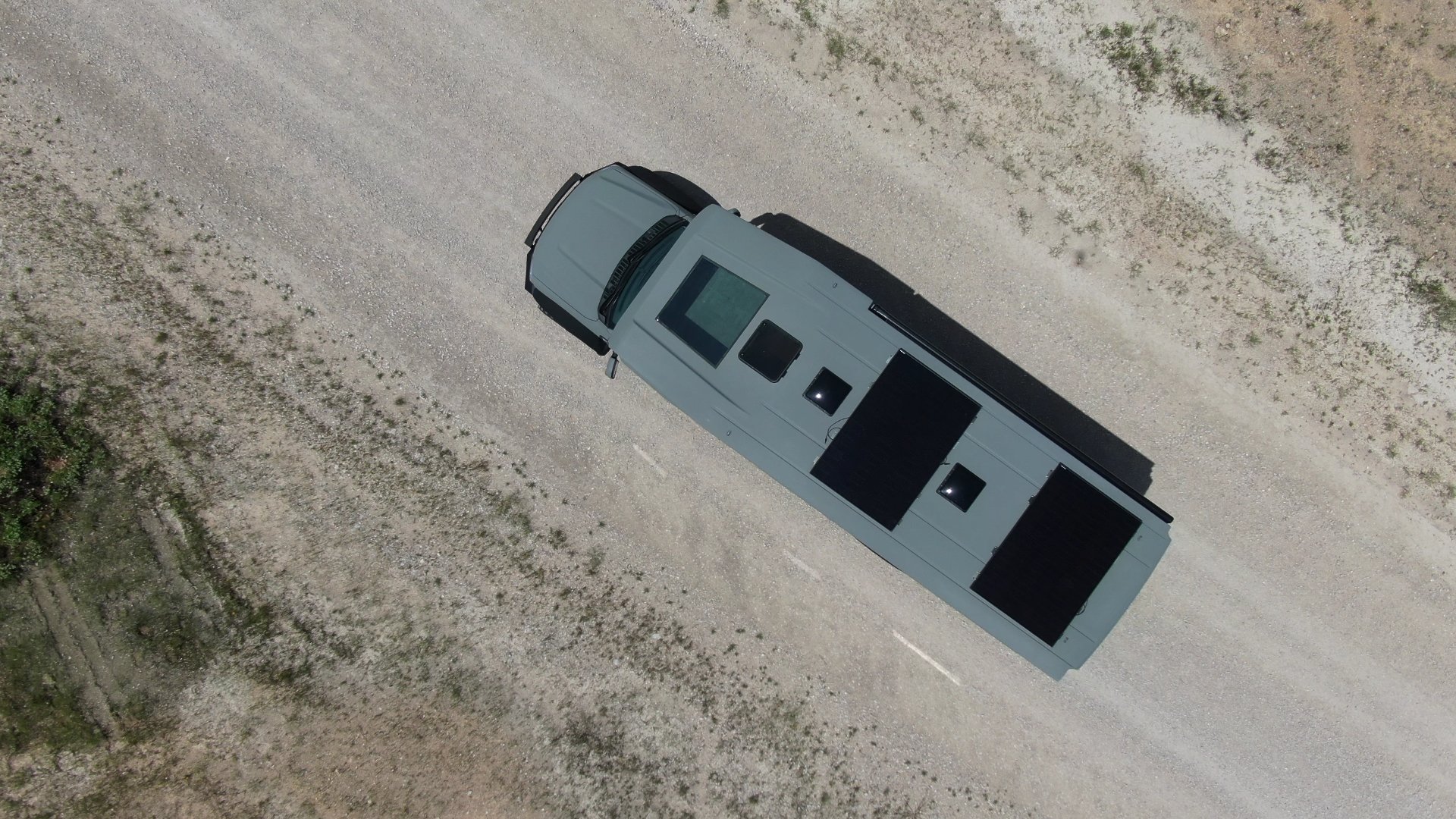

When we imagined a better truck camper habitat, the skylight was non-negotiable. Our massive 9sqft skylight is standard. During the day it floods the space with natural light and at night creates an awe inspired window to the cosmos. You really have to see it to believe it

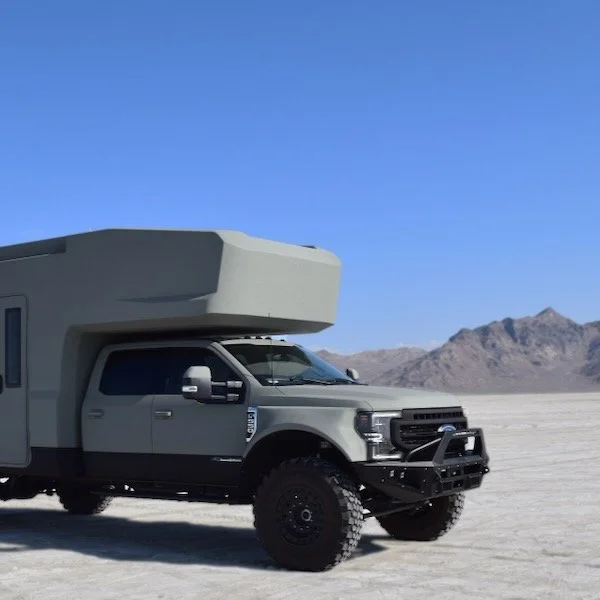

Made for Ford Superduty
Specifically made for the best selling full size chassis-cab in North America. Works with any 2017+ F550 with 84” cab-to-axle measurement.
SPECIFICATIONS
Approach Angle: 35°
Departure Angle: 22°
Breakover Angle: 12°
Habitat Height: 11'-2" (mounted)
Habitat Length: 21'-2" (including cabover)
Max Width: 94" (at wheel wells)
Inside Standing Height: 7'-0" (Max)
Composite Weight: -2100 lb (950kg)
Hybrid Subframe Weight: -600 lb (275 kg)
FREQUENTLY ASKED QUESTIONS
-
Our “Stage 1” shell includes:
- 75” x 24” Euro Style door with multi-point lock, integrated sunshade and screen
- 9 SQFT tempered glass skylight.
- Bespoke 4 point hybrid subframe. FEA tested and constructed with high strength steel. -
We provide the ready to build shell. We can connect you with a qualified up-fitter to finish the interior options for your build.
-
Typically 2 months to final assembly, however we may have inventory of available shells throughout the year. Reach out and we can confirm.
-
Our shell has an R Value of about R6. While our design does have structural foam, it is intended to be insulated additionally in the interior, the level pending your specific use case for your truck.
Wall Thickness - 1 ⅜”
Floor Thickness - 2” -
The empty shell is 2100lbs.
The 4 point subframe is 600lbs.
Total weight is 2700 lbs. -
Our shell is designed to fit the Ford F550 84” cab to axle XLT or Lariat Crew Cab. While our shell is compatible with a dual wheel configuration we recommend converting to super singles for increased off road capability.
